Use-wear characteristics of the obsidian experimental artifacts

doi:10.16359/j.1000-3193/AAS.2024.0023

Abstract

Abstract:

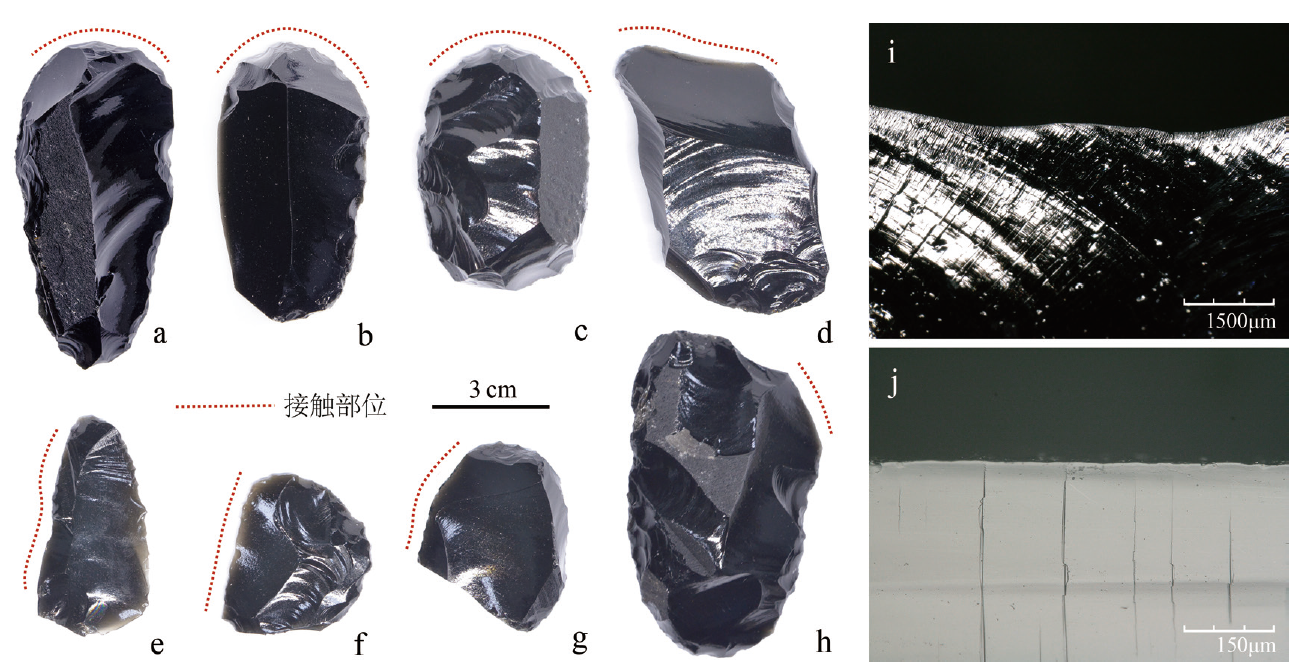

In order to completely understand the use-wear of obsidian lithic artifacts under Dark and Bright Field, the utilization experiments of obsidian were carried out on various processed material, such as meat, hide, gramineous plants, wood, bone, antler and ochre. Four items were recorded: micro-scarrings, abrasion, striation, and polish. Various of use wear patterns have be concluded in this project, including: 1) Smooth, continuous polish and sleek striation, related to hide work. 2) Rolled-over micro-scarrings, continuous and bright polish, associated with processing gramineous plants. 3) Rolled-over micro-scarrings, rough polish with comet-like pits, and intermittent striations, associated with wood work. 4) Continuous micro-scarrings with hinged and stepped termination, caused by contacting with bone and antler work. 5) Fern-like striations without polish, associated with processing non-organic material. 5) Metal luster, associated with processing ochre.

The effect of processed material, edge angle, action and processing time on microwear patterns were also discussed. The results showed that: 1) The hardness of processed material had great effect on the microwear patterns. With the hardness increasing, the size of micro-scarrings became larger; the abrasion and polish on the ridges grew from smooth to rough; and the striation changed from sleek form to intermittent or rough-bottomed form. 2) The angles of lithic artifact edge and actions also mattered. When cutting with thin-edged tools, discontinuous polish and strong striations will be formed. The striation are always parallel to or oblique to the ridge. While scraping with thick-edged tools, continuous polish and weak striations will be formed. The striations are perpendicular to the ridge. 3) The length of processing had a weak effect on use wear patterns. Various typical microwear patterns were developed in a very short time.

The microwear patterns of obsidian and flint were compared briefly in this study. The results indicated that obsidian and flint share same wear patterns on samples which were used for processing hide, gramineous plants, wood and ochre. However, the wear pattern of bone and antler work have great difference between obsidian and flint.

This paper identified different obsidian use-wear patterns about various processed materials and compared the patterns with the results of other scholars. The results are reproducible and consistent with the conclusion of Hurcombe and and other scholars. The data will support the further research on the function of archaeological obsidian lithic artifacts and the subsistence strategies of hunter-gatherers in Northeastern and Xizang region in China.

Key words: obsidian, experimental archaeology, microwear, polish

CLC Number:

K876.2

LI Yao, CHEN Hong, XU Ting. Use-wear characteristics of the obsidian experimental artifacts[J]. Acta Anthropologica Sinica, 2024, 43(05): 727-743.

Figures/Tables 9

References 38

[1]	陈胜前. 考古学理论的层次问题[J]. 东南文化, 2012, 6: 28-32
[2]	周振宇. 中国石器实验考古研究概述[J]. 考古, 2020, 6: 77-87
[3]	Chen H. Progress, problem and prospect: An overview of lithic use-wear study in China[J]. Quaternary International, 2020, 535: 58-68
[4]	万晨晨, 陈全家, 方启, 等. 吉林和龙大洞遗址的调查与研究[J]. 考古学报, 2017, 1: 1-30
[5]	田川, 徐廷, 关莹, 等. 吉林抚松枫林遗址细石核研究[J]. 人类学学报, 2019, 38(1): 19-32
[6]	申旭科, 李婷, 张东菊. 中国旧石器原料开发策略的研究进展[J]. 人类学学报, 2023, 42(2): 161-176
[7]	Perreault C, Boulanger MT, Hudson AM, et al. Characterization of obsidian from the Tibetan Plateau by XRF and NAA[J]. Journal of Archaeological Science: Reports, 2016, 5: 392-399
[8]	侯哲, 赵宇超, 高星, 等. 原料产地对中国东北和韩国旧石器时代晚期黑曜岩石器工业的影响[J]. 人类学学报, 2022, 41(6): 982-993
[9]	刘爽, 陈全家, 崔剑锋, 等. 吉林省东部旧石器时代晚期遗址黑曜岩制品原料来源探索[J]. 边疆考古研究, 2014, 2: 261-276
[10]	赵海龙, 徐廷, 马东东. 吉林和龙大洞遗址黑曜岩雕刻器的制作技术与功能[J]. 人类学学报, 2016, 35(4): 537-548
[11]	徐廷. 高分辨率环境背景下的和龙大洞遗址石器工业研究[D]. 北京: 中国科学院大学博士论文, 2022
[12]	Zhang M. Late Pleistocene and Early Holocene Microblade-based Industries in Northeastern Asia: A Macroecological Approach to Foraging Societies[M]. Forward by Lawrence G. Straus. BAR International Series 3056, Volume 6 of the series Archaeology of East Asia. BAR Publishing, 2021
[13]	王小庆. 石器使用痕迹显微观察的研究[M]. 北京: 文物出版社, 2008
[14]	王小庆. 陕西宜川龙王辿遗址第一地点出土石器的微痕观察[J]. 考古, 2017, 11: 100-111
[15]	高星, 沈辰. 石器微痕分析的考古学实验研究[M]. 北京: 科学出版社, 2008
[16]	方启. 吉林省东部地区黑曜岩石器微痕研究[D]. 博士研究生毕业论文, 长春: 吉林大学, 2009
[17]	赵海龙, 徐廷, 马东东. 吉林和龙大洞遗址黑曜岩雕刻器的制作技术与功能[J]. 人类学学报, 2016, 35(4): 537-548
[18]	Setzer TJ. Use-wear experiments with Sardinian obsidian: Determining its function in the Neolithic[D]. University of South Florida, 2004
[19]	Hurcombe L. Use wear analysis and obsidian: Theory, experiments and results[M]. JR. Collis Publications, Dept. of Archaeology and Prehistory, University of Sheffield, 1992
[20]	Kononenko N. Experimental and Archaeological Studies of Use-wear and Residues on Obsidian Artefacts from Papua New Guinea[M]. Technical Report of the Australian Museum, Online, 2011
[21]	Kononenko N, Torrence R, White P. Unexpected uses for obsidian: Experimental replication and use-wear/residue analyses of chopping tools[J]. Journal of Archaeological Science, 2015, 54
[22]	Nesbitt J, Johnson R, Horowitz RA. Was obsidian used for camelid shearing in ancient Peru? An experimental and use-wear study[J]. Ethnoarchaeology, 2019, 1-15
[23]	Stemp WJ, Braswell GA, Helmke CGB, et al. Technological, use-wear, and residue analyses of obsidian blades from Classic Maya burials at Pook's Hill, Belize[J]. Journal of Archaeological Science: Reports, 2019, 26
[24]	Walton DP. An experimental program for obsidian use-wear analysis in Central Mexican archaeology[J]. Journal of Archaeological Method and Theory, 2019, 26:895-942 doi: 10.1007/s10816-018-9398-7
[25]	Walton DP. Bloodletting in ancient Central Mexico: Using lithic analyses to detect changes in ritual practices and local ontologies[J]. Journal of Archaeological Method Theory, 2021, 28: 274-306
[26]	方启, 高星, 陈全家. 黑曜岩石器加工木质材料的微痕研究[J]. 边疆考古研究, 2012, 1: 389-403
[27]	方启, 陈全家. 黑曜岩石器加工兽骨的微痕研究[C].见:中国科学院古脊椎动物与古人类研究所,山东天宇自然博物馆(主编).第十二届中国古脊椎动物学学术年会论文集[A]. 北京: 海洋出版社, 2010, 151-164
[28]	Liu JY, Chen H. An experimental case of wood-working use-wear on quartzite artefacts[J]. Documenta Praehistorica, 2016, 43
[29]	Chen H, Wang J, Lian HR, et al. An experimental case of bone-working usewear on quartzite artifacts[J]. Quaternary International, 2017, 434: 129-137
[30]	陈虹, 张晓凌, 沈辰. 石制品使用微痕多阶段成形轨迹的实验研究[J]. 人类学学报, 2013, 32(1): 1-18
[31]	Clemente Conte I, Lazuén Fernández T, Astruc L, Rodríguez AC. Use-wear analysis of nonflint lithic raw materials: The cases of Quartz/Quartzite and Obsidian[C]. In: Marreiros JM, Bao JFG, Bicho NF. Use-wear and residue analysis in archaeology, Manuals in Archaeological Method, Theory and Technique[A]. Cham: Springer International Publishing Switzerland, 2015
[32]	阿子島香. 石器の使用痕[M]. 京都市: ニューサイエンス社,1989
[33]	Juan JI, Niccolò M. Quantitative use-wear analysis of stone tools: Measuring how the intensity of use affects the identification of the worked material[J]. PloS one, 2021, 16(9): e0257266
[34]	Vaughan PC. Use-Wear Analysis of Flaked Stone Tools[M]. Tucson: University of Arizona Press, 1985
[35]	刘吉颖, 陈虹, 沈易铭. 燧石制品加工竹木材料的微痕实验研究[C].见:陈虹(主编).微研大义:石器微痕研究与思考[A]. 杭州: 浙江大学出版社, 2020, 169-188
[36]	任思腾. 科学实验中的可重复概念[J]. 自然辩证法通讯, 2020, 42(9): 46-52
[37]	徐廷, 陈虹, 李尧. 吉林和龙大洞遗址2010年出土雕刻器的初步研究[J]. 人类学学报, 2023, 42(6): 751-763
[38]	御堂岛正. 黒曜石製石器の実験的痕跡研究[D]. 東京都: 同成社, 2020, 30-78

标本号ID	类型Type	刃角Edge angle	硬度Hardness	材料Materials	动作Action	阶段时长Times(min)
001	琢背小刀	36	软性	猪肉	切	10, 15
002	端刮器	76	软性	鞣制麂皮	刮	5, 10, 20, 30
003	琢背小刀	49	软性	鞣制麂皮	切	10
004	琢背小刀	31	软性	干狗尾草	切	5, 10, 20, 30, 40
005	端刮器	76	中性	鲜柞木	刮	5, 10, 20, 30
006	琢背小刀	33	中性	鲜柞木	切	5, 10, 20, 30
007	琢背小刀	34	中性	干柞木	切	5, 10, 20, 30
008	琢背小刀	23	中性	干柞木	刮	5
009	端刮器	72	中性	干柞木	刮	10, 20, 30
010	琢背小刀	45	硬性	鲜猪肩胛骨	切	5, 10, 20, 30
011	刮削器	41	硬性	干牛骨	切	5, 10
012	端刮器	89	硬性	干牛骨	刮	5, 10, 20, 30, 40
013	琢背小刀	41	特硬性	鹿角	切	10
014	端刮器	70	特硬性	鹿角	刮	5, 10, 20, 30
015	刮削器	89	特硬性	赭石	刮	5
016	琢背小刀	20	多种物质	鲜猪肩胛骨	肢解剔肉	15
017	刮削器	84	特硬性	石锤	硬锤修理	0.16
018	刮削器	65	特硬性	石锤	修磨刃缘	0.16, 1
019	端刮器	68	特硬性	砂岩	磨制	20
020	石片	46	软性	皮革	切	20
021	琢背小刀	45	软性	干狗尾草	切	20
022	石片	62	中性	干柞木	刮	20
023	琢背小刀	70	硬性	干牛骨	刮	20
024	琢背小刀	55	特硬性	鹿角	切	20
025	刮削器	82	特硬性	赭石	刮	5

标本号ID	类型Type	刃角Edge angle	硬度Hardness	材料Materials	动作Action	阶段时长Times(min)
001	琢背小刀	36	软性	猪肉	切	10, 15
002	端刮器	76	软性	鞣制麂皮	刮	5, 10, 20, 30
003	琢背小刀	49	软性	鞣制麂皮	切	10
004	琢背小刀	31	软性	干狗尾草	切	5, 10, 20, 30, 40
005	端刮器	76	中性	鲜柞木	刮	5, 10, 20, 30
006	琢背小刀	33	中性	鲜柞木	切	5, 10, 20, 30
007	琢背小刀	34	中性	干柞木	切	5, 10, 20, 30
008	琢背小刀	23	中性	干柞木	刮	5
009	端刮器	72	中性	干柞木	刮	10, 20, 30
010	琢背小刀	45	硬性	鲜猪肩胛骨	切	5, 10, 20, 30
011	刮削器	41	硬性	干牛骨	切	5, 10
012	端刮器	89	硬性	干牛骨	刮	5, 10, 20, 30, 40
013	琢背小刀	41	特硬性	鹿角	切	10
014	端刮器	70	特硬性	鹿角	刮	5, 10, 20, 30
015	刮削器	89	特硬性	赭石	刮	5
016	琢背小刀	20	多种物质	鲜猪肩胛骨	肢解剔肉	15
017	刮削器	84	特硬性	石锤	硬锤修理	0.16
018	刮削器	65	特硬性	石锤	修磨刃缘	0.16, 1
019	端刮器	68	特硬性	砂岩	磨制	20
020	石片	46	软性	皮革	切	20
021	琢背小刀	45	软性	干狗尾草	切	20
022	石片	62	中性	干柞木	刮	20
023	琢背小刀	70	硬性	干牛骨	刮	20
024	琢背小刀	55	特硬性	鹿角	切	20
025	刮削器	82	特硬性	赭石	刮	5
