人类学学报 ›› 2025, Vol. 44 ›› Issue (04): 545-555.doi: 10.16359/j.1000-3193/AAS.2025.0059cstr: 32091.14.j.1000-3193/AAS.2025.0059
• 特邀文章 • 下一篇
收稿日期:2025-04-11
接受日期:2025-06-06
出版日期:2025-08-15
发布日期:2025-08-07
作者简介:惠家明,博士,从事古人类学研究。E-mail: huijiaming@ivpp.ac.cn
基金资助:Received:2025-04-11
Accepted:2025-06-06
Online:2025-08-15
Published:2025-08-07
摘要:

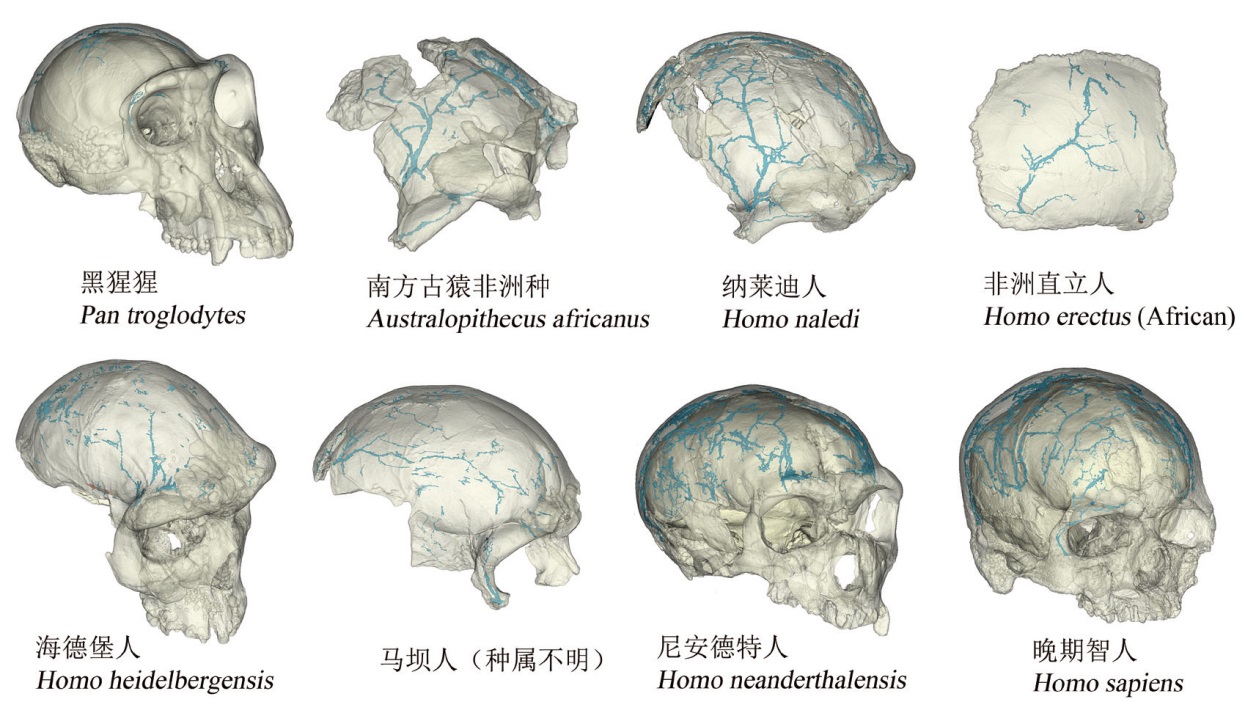

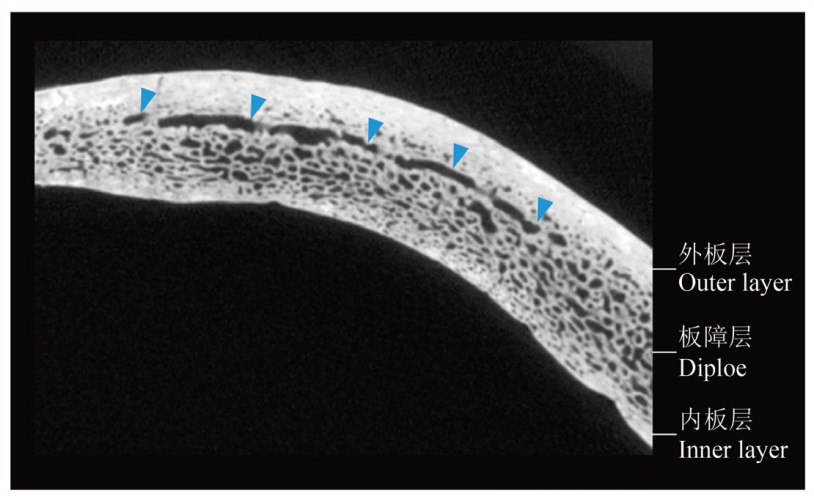

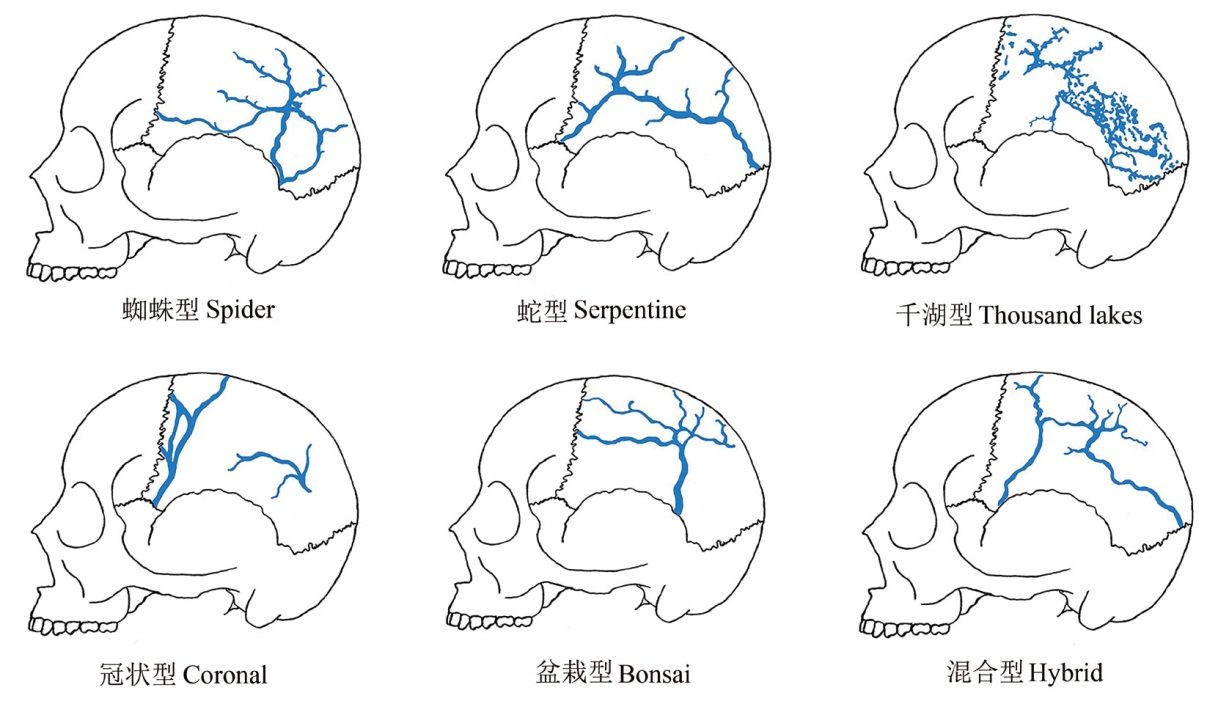

板障静脉是颅骨骨壁内部的复杂血管网络,在颅脑血液循环中发挥重要作用。自18世纪初发现该结构以来,受限于传统的解剖学观测方法,发表的相关研究成果非常匮乏,其形态变异与功能特征存在较多疑问。近年来,借助CT扫描设备和新开发的三维建模复原技术,板障静脉的研究正在突破瓶颈限制。新研究注意到板障静脉的传统分类命名缺少广泛适用性,因此重新确认了板障静脉的分布特点,并发现了其在脑脊液循环以及大脑冷却等方面的功能和意义。于古人类化石研究而言,则进一步注意到了板障静脉在不同种属间的差异,该研究有助于古人类化石的分类学讨论。此外,板障静脉可能参与了人类大脑演化,与颅容量以及大脑局部形状存在关联。本文在梳理板障静脉的研究历史和最新的研究进展的基础上,总结了其技术难点及未来的研究方向,以期促进国内相关研究的开展。
中图分类号:
惠家明. 颅骨板障静脉的三维复原及其在人类演化中的意义[J]. 人类学学报, 2025, 44(04): 545-555.
HUI Jiaming. Three dimensional reconstruction of cranial diploic veins and its significance in human evolution[J]. Acta Anthropologica Sinica, 2025, 44(04): 545-555.
| [1] | Hui J. Comparative anatomy of the diploic vessels in hominids: implications for the evolutionary history of human cranial blood circulation[D]. Paris: Sorbonne University, 2024 |
| [2] | García-gonzález U, Cavalcanti DD, Agrawal A, et al. The diploic venous system: surgical anatomy and neurosurgical implications[J]. Neurosurgical Focus, 2009, 27(5): E2 |
| [3] |
Píšová H, Rangel De Lázaro G, Velemínský P, et al. Craniovascular traits in anthropology and evolution: from bones to vessels[J]. Journal of Anthropological Sciences, 2017, 95: 35-65
doi: 10.4436/JASS.95003 pmid: 28190005 |
| [4] |
Bruner E, Mantini S, Musso F, et al. The evolution of the meningeal vascular system in the human genus: From brain shape to thermoregulation[J]. American Journal of Human Biology, 2011, 23(1): 35-43
doi: 10.1002/ajhb.21123 pmid: 21120884 |
| [5] |
Falk D. Evolution of cranial blood drainage in hominids: Enlarged occipital/marginal sinuses and emissary foramina[J]. American Journal of Physical Anthropology, 1986, 70(3): 311-324
pmid: 3092672 |
| [6] | Hui J, Balzeau A. The diploic venous system in Homo neanderthalensis and fossil Homo sapiens: A study using high-resolution computed tomography[J]. American Journal of Biological Anthropology, 2023, 182(3): 412-427 |
| [7] | Grimaud-hervé D. Endocranial Vasculature[M]. In: Schwartz JH, Tattersall I, Holloway RL(eds.). The human fossil record, brain endocasts - The paleoneurological evidence: volume 3. New York: Wiley-Liss, 2002: 273-277 |
| [8] | Breschet G. Recherches anatomiques, physiologiques et pathologiques sur le système veineux[M]. Paris: Villeret, 1829 |
| [9] |
Hershkovitz I, Greenwald C, Rothschild BM, et al. The elusive diploic veins: Anthropological and anatomical perspective[J]. American Journal of Physical Anthropology, 1999, 108(3): 345-358
pmid: 10096685 |
| [10] | Schünke M, Schulte E, Schumacher U, et al. Tête, cou et neuro-anatomie[M]. Louvain-la-Neuve: De Boeck supérieur, 2016 |
| [11] |
Tsutsumi S, Ono H, Ishii H, et al. Diploic veins of the cranial base: an anatomical study using magnetic resonance imaging[J]. Surgical and Radiologic Anatomy, 2019, 41(9): 1029-1036
doi: 10.1007/s00276-019-02283-y pmid: 31286202 |
| [12] | Lachkar S, Dols M M, Ishak B, et al. The diploic veins: A comprehensive review with clinical applications[J]. Cureus, 2019, 11(4): e4422 |
| [13] |
Tsutsumi S, Nakamura M, Tabuchi T, et al. Calvarial diploic venous channels: an anatomic study using high-resolution magnetic resonance imaging[J]. Surgical and Radiologic Anatomy, 2013, 35(10): 935-941
doi: 10.1007/s00276-013-1123-3 pmid: 23625040 |
| [14] | Yamashiro K, Muto J, Wakako A, et al. Diploic veins as collateral venous pathways in patients with dural venous sinus invasion by meningiomas[J]. Acta Neurochirurgica, 2021, 163(6): 1687-1696 |
| [15] |
Tsutsumi S, Ogino I, Miyajima M, et al. Cranial arachnoid protrusions and contiguous diploic veins in CSF drainage[J]. American Journal of Neuroradiology, 2014, 35(9): 1735-1739
doi: 10.3174/ajnr.A4007 pmid: 24948506 |
| [16] |
Tsutsumi S, Ogino I, Miyajima M, et al. Cerebrospinal fluid drainage through the diploic and spinal epidural veins[J]. Journal of Anatomy, 2015, 227(3): 297-301
doi: 10.1111/joa.12349 pmid: 26184099 |
| [17] | Falk D. Brain evolution in Homo: The “radiator” theory[J]. Behavioral and Brain Sciences, 1990, 13(2): 333-344 |
| [18] | Poblet E, Jimenez F, Escario-Travesedo E, et al. Eccrine sweat glands associate with the human hair follicle within a defined compartment of dermal white adipose tissue[J]. British Journal of Dermatology, 2018, 178(5): 1163-1172 |
| [19] | Bruner E, Eisova S. Vascular microforamina and endocranial surface: Normal variation and distribution in adult humans[J]. The Anatomical Record, 2024 |
| [20] |
Rangel De Lázaro G, Neubauer S, Gunz P, et al. Ontogenetic changes of diploic channels in modern humans[J]. American Journal of Physical Anthropology, 2020, 173(1): 96-111
doi: 10.1002/ajpa.24085 pmid: 32462711 |
| [21] |
Rangel De Lázaro G,De La Cuétara JM,Píšová H, et al. Diploic vessels and computed tomography: Segmentation and comparison in modern humans and fossil hominids[J]. American Journal of Physical Anthropology, 2016, 159(2): 313-324
doi: 10.1002/ajpa.22878 pmid: 26498859 |
| [22] | Yamashiro K, Wakako A, Omi T, et al. Evaluating diploic vein blood flow using time-resolved whole-head computed tomography angiography and determining the positional relationship between typical craniotomy approaches and diploic veins in patients with meningioma[J]. Acta Neurochirurgica, 2022, 164(11): 2999-3010 |
| [23] |
Tsutsumi S, Ono H, Ishii H. Correlation of the external occipital protuberance with venous sinuses: A magnetic resonance imaging study[J]. Surgical and Radiologic Anatomy, 2022, 44(7): 999-1006
doi: 10.1007/s00276-022-02969-w pmid: 35737086 |
| [24] | Eisová S, Menéndez LP, Velemínský P, et al. Craniovascular variation in four late Holocene human samples from southern South America[J]. The Anatomical Record, 2023, 306(1): 143-161 |
| [25] | Masters BR. Fractal analysis of the vascular tree in the human retina[J]. Annual Review of Biomedical Engineering, 2004, 6(1): 427-452 |
| [26] |
Sanghera B, Banerjee D, Khan A, et al. Reproducibility of 2D and 3D fractal analysis techniques for the assessment of spatial heterogeneity of regional blood flow in rectal cancer[J]. Radiology, 2012, 263(3): 865-873
doi: 10.1148/radiol.12111316 pmid: 22438361 |
| [27] | Di Ieva A. The fractal geometry of the brain[M]. New York: Springer, 2016 |
| [28] | Mandelbrot BB. The fractal geometry of nature[M]. Oxford: Freeman, 1982 |
| [29] | Liu W, Athreya S, Xing S, et al. Hominin evolution and diversity: a comparison of earlier-Middle and later-Middle Pleistocene hominin fossil variation in China[J]. Philosophical Transactions of the Royal Society B: Biological Sciences, 2022, 377(1847): 20210040 |
| [30] | Roksandic M, Radović P, Wu X, et al. Resolving the “muddle in the middle”: The case for Homo bodoensis sp. nov.[J]. Evolutionary Anthropology: Issues, News, and Reviews, 2022, 31(1): 20-29 |
| [31] | Wu X, Pei S, Cai Y, et al. Morphological and morphometric analyses of a late Middle Pleistocene hominin mandible from Hualongdong, China[J]. Journal of Human Evolution, 2023, 182: 103411 |
| [32] | Wu X, Bruner E. The endocranial anatomy of Maba 1[J]. American Journal of Physical Anthropology, 2016, 160(4): 633-643 |
| [33] | 吴秀杰. 中更新世晚期许家窑人化石的研究进展[J]. 人类学学报, 2024, 43(1): 5-18 |
| [34] | 刘武, 吴秀杰, 邢松. 更新世中期中国古人类演化区域连续性与多样性的化石证据[J]. 人类学学报, 2019, 38(4): 473-490 |
| [35] | Balzeau A, Albessard-Ball L, Kubicka AM, et al. Frontal sinuses and human evolution[J]. Science Advances, 2022, 8(42): eabp9767 |
| [36] | Balzeau A, Albessard-Ball L, Kubicka AM, et al. Frontal sinus variation in extant species of the genera Pan, Gorilla and Homo[J]. Bulletins et mémoires de la société d’anthropologie de Paris, 2021, 33(2): 27-52 |
| [37] | Balzeau A, Buck LT, Albessard L, et al. The Internal Cranial Anatomy of the Middle Pleistocene Broken Hill 1 Cranium[J]. PaleoAnthropology, 2017: 107-138 |
| [38] | Quam R, Martínez I, Rosa M, et al. Early hominin auditory capacities[J]. Science Advances, 2015, 1(8): e1500355 |
| [39] | Conde-Valverde M, Martínez I, Quam R, et al. The ear of the Sima de los Huesos hominins (Atapuerca, Spain)[J]. The Anatomical Record, 2024, 307(7): 2410-2424 |
| [40] | Wu X, Crevecoeur I, Liu W, et al. Temporal labyrinths of eastern Eurasian Pleistocene humans[J]. Proceedings of the National Academy of Sciences, 2014, 111(29): 10509-10513 |
| [41] | Li ZY, Wu X, Zhou LP, et al. Late Pleistocene archaic human crania from Xuchang, China[J]. Science, 2017, 355(6328): 969-972 |
| [42] | Saban R. Image of the human fossil brain: Endocranial casts and meningeal vessels in young and adult subjects[M]. In: Origins of the human brain. Oxford: Oxford University Press, 1995: 11-39 |
| [43] | Kunz AR, Iliadis C. Hominid evolution of the arteriovenous system through the cranial base and its relevance for craniosynostosis[J]. Child’s Nervous System, 2007, 23(12): 1367-1377 |
| [44] | Bruner E, Sherkat S. The middle meningeal artery: from clinics to fossils[J]. Child’s Nervous System, 2008, 24(11): 1289-1298 |
| [45] | Bruner E, Mantini S, Perna A, et al. Fractal dimension of the middle meningeal vessels: variation and evolution in Homo erectus, Neanderthals, and modern humans[J]. European Journal of Morphology, 2006, 42(4-5): 217-224 |
| [46] |
Bruner E, De La Cuétara JM, Masters M, et al. Functional craniology and brain evolution: from paleontology to biomedicine[J]. Frontiers in Neuroanatomy, 2014, 8: 19
doi: 10.3389/fnana.2014.00019 pmid: 24765064 |
| [47] | Juskys R, Rocka S, Suchomlinov A. Anatomical variations of superior sagittal sinus and tributary bridging veins: A cadaveric study[J]. Cureus, 2022, 14(2):e21979 |
| [48] | Anzelmo M, Ventrice F, Barbeito-Andrés J, et al. Ontogenetic changes in cranial vault thickness in a modern sample of Homo sapiens[J]. American Journal of Human Biology, 2015, 27(4): 475-485 |
| [49] | Balzeau A. Thickened cranial vault and parasagittal keeling: Correlated traits and autapomorphies of Homo erectus?[J]. Journal of Human Evolution, 2013, 64(6): 631-644 |
| [50] | Hui J, Balzeau A. Investigating the relationship between cranial bone thickness and diploic channels: A first comparison between fossil Homo sapiens and Homo neanderthalensis[J]. The Anatomical Record, 2024, 307(6): 2036-2046 |
